Face Film
|
Acrylic
|
|
Film Thickness
|
100 mics
|
|
AVG(RA)
|
≥30 CIL/㎡
|
|
Durability
|
3 years Outdoor
|
|
Width
|
up to 124cm, can be customized
|
|
Release Liner
|
115 Gram Poly-coated paper liner
|
|
Feature
|
Plotter cutting, Screen Printing
|

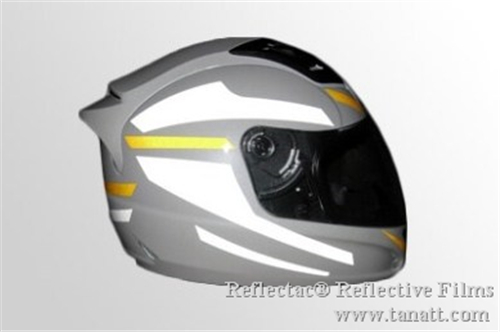

TN9014 Helmet reflective sheeting Description
TN9014 Acrylic Reflective Film is an upgraded version of the TN9014. It’s designed for use in helmets. Higher reflection coefficient and cheap price make it hot sale at Southeast Asian countries, Brazil etc. as they are popular with Motorcycle to make to helmets reflective sticker.
Technical Data
-
Retroreflective Elements: enclosed glass beaded
-
Durability: 1-3 years outdoor by the specialist application (under vertical outdoor exposure)
-
Roll Sizes: 1.24M (W) x 45.7M, 48” (W) x 50 yards
-
Coefficients of Retroreflection (Ra)
|
Obs. Angle
|
Ent. Angle
|
White
|
Yellow
|
Orange
|
Red
|
Blue
|
Green
|
Brown
|
Black
|
|
0.2
|
-4
|
30
|
4.5
|
4
|
3.2
|
0.6
|
2
|
0.2
|
0.1
|
*Test by Roadmaster according to ASTM D4956
-
Film Thickness: 100 mic
-
Face Film: 30 mic Acrylic
-
Adhesive: 30 mics permanent pressure sensitive adhesive
-
Release Liner: 115 GSM Poly coated paper liner (white or yellow)
-
Application Surface: Flat surface only such as aluminum
-
Application Temperature: 18-28℃ by any of the following methods:
-
Mechanical squeeze roll applicator
-
Hand squeeze roll applicator
-
Hand application is recommended for copy only
Leading Time
-
We have regular stock in the warehouse, otherwise, it will take 7-10 days upon deposits receive. Please confirm with us before ordering.
OEM & ODM
-
For order less than 100 rolls, we can do OEM Carton and Product mark
-
For order more than 100 rolls, and request your own logo, it needs one more deposit.
Quality Inspection
-
Raw material inspection: From face film to release paper, all the material will be strictly inspected before putting into production. We only use Qualified raw materials;
-
Production inspection: QC will cut production samples, bring it to our own lab then inspect brightness, stretch, thickness, etc.，also they will bring Brightness detector to production line and check for brightness.
-
Final inspection：We will sample test the final product, and also do inspection under client’s requested.
Package
-
Inner packing: PET inner film + Plastic Bag + 2 pc Plastic Plug
-
Outer packing: 5 layers carton box with carton sealing nail
|
Model
|
Size (M)
|
Carton (M)
|
N.W. (KG)
|
G.W. (KG)
|
20GP (Roll)
|
|
TN9014
|
1.24*45.7
|
1.31*0.19*0.215
|
18.4
|
21.6
|
563
|
-
*This data only for reference
-
*Please contact our staff for customized products.
-
*The data does not include the pallets size, if your order is less than one container, we recommended using pallets for protecting the goods.
-
Loading Port：Shenzhen or other China port
Storage
-
Reflective Sheeting must be used within 1 year after the date of receipt from Tanatt;
-
Please use PET inner film to tightly packed partially used Rolls, then return it back to the shipping carton. Vertically placed it can avoid distortion due to substrate buckling or extension due to moisture absorption, and avoid pressure that may damage the reflective layer.
-
Store the sheeting in a clean, dry area at 20 ℃ and 50% relative humidity and away from direct sunlight;
